The Stair Concept

Concept description

CLIENT - 1: Trent Jason

Products: Furniture
Material: Steel and wood
Descriptors: Irregular, erratic, random. Matching with my adjective of the chair as "irregular."

My concept is an irregular workspace with opaque, glass as the roof for maximum natural lighting on the furniture and overall low energy design. The staircase within is light, airy and irregular with a hint of repetition to complement the furniture on show.

CLIENT - 2: Khyzyl Saleem

Products: Cars, automobile
Material: steel, metal
Descriptors: Overtaking, uneven, outdistance. Matching with my verb of the car as "overtaking"

My concept is an orthogonal space doubling as a showroom to showcase the well-defined automobiles on show. The staircase within this design is bold, chaotic and indestructible reflecting the longevity of the cars on show. In addition, the main staircase, as well as the secondary stairs, are individual blocks, each overtaking each other on the race to the floor.

Original Sketch

This is the original sketch I selected to further develop.

Section drawings

Design 1, Section 1 & 2

Design 2, Section 1 & 2

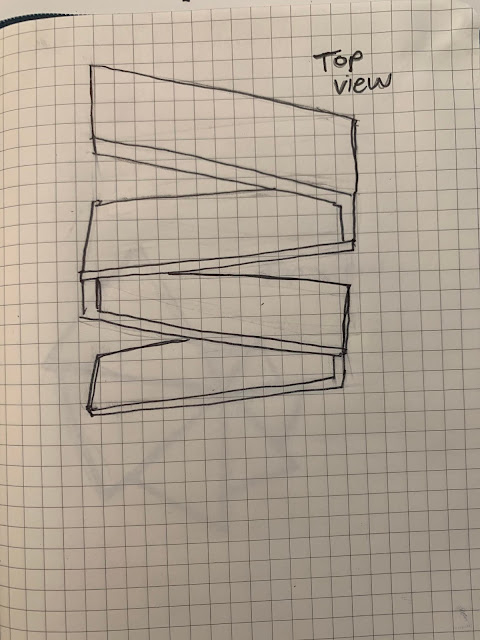

Top view sketch of design 2

Section drawings of the full model

 Model 1

Staircase on Sketchup

Lower staircase - Isometric view

Lower staircase - In context

Upper staircase - "Plan" view

Upper staircase - Elevation

Full view of the model showing both staircases

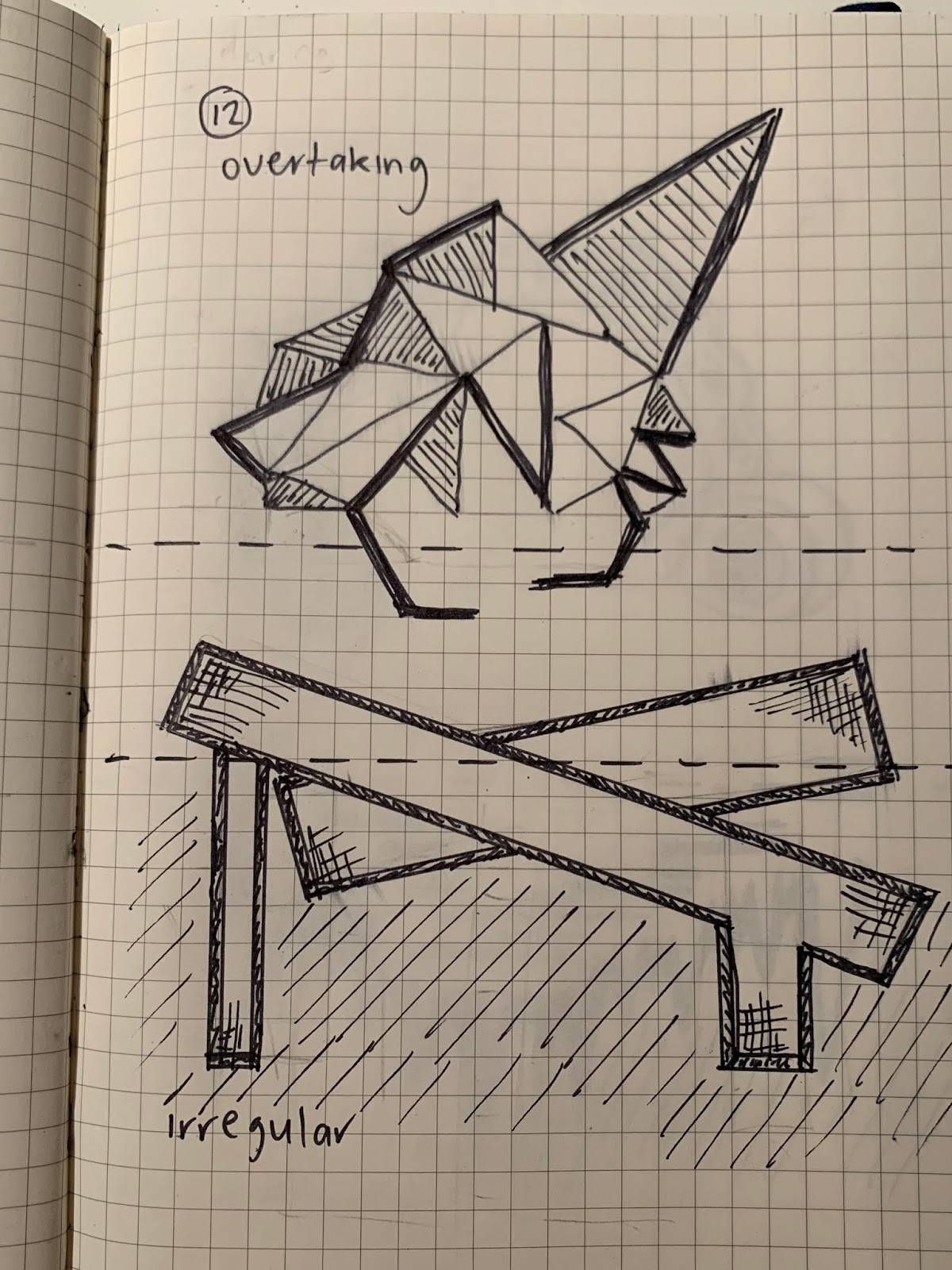

18 SKETCHES OF SECTIONS

THREE IMAGES, NOUN, VERB & ADJECTIVE



Khyzyl Saleem

Mechanism

Overtaking

Curvacious

Audrey Allen and Ashton Cameron

Gemstone

Embellishing

Eye-catching

Trent Jason

Steel

Texturing

Irregular
